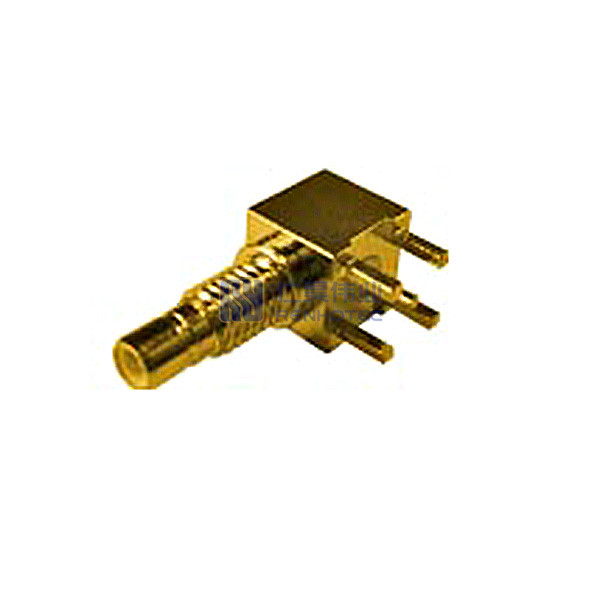

SMB Разъем Прямой Угол Джек Мужской Pin Панель Монтаж Сквозное Отверстие 50 Ом — RHT-626-0006
Разъем SMB (Sub-Miniature version B) — это быстрозажимной миниатюрный соединитель, работающий на частоте до 4 ГГц. Интерфейс SMB оснащен защелкивающимся механизмом соединения и доступен в 50-омных конфигурациях.
Разъемы SMB меньше, чем разъемы SMA. Однако эти разъемы не идеальны для работы в жестких условиях окружающей среды, поскольку они не такие прочные, как разъемы SMA.
Доступные в конфигурациях 50 Ом и 75 Ом, разъемы SMB выполнены в соответствии со стандартами интерфейса MIL-C-39012, IEC 60169-10 и CECC 22130.
Интерфейс
Сценарии применения
Product Specification
Select... | SMB Type-ru |
||
---|---|---|---|
Select... | Jack-ru |
||
Select... | Right Angle-ru |
||
Select... | Male Pin-ru |
||
Contact Termination Style | Solder-ru |
||
Select... | Panel Mount-ru |
||
Select... | Through Hole-ru |
||
Select... | Snap On-ru |
||
Number of Ports | 1-ru |
||
Select... | 50 ohm-ru |
||
Frequency - Max | 4GHz-ru |
||
Shell Material | Copper Alloy-ru |
||
Shell Finish | Gold Plated-ru |
||
Insulator Material | Teflon White-ru |
||
Contact Material | Brass-ru |
||
Contact Finish | Gold Plated-ru |
||
Dielectric Withstanding Voltage | 1000 VRMS Max-ru |
||
Insultation Resistance | ≥1000MΩ-ru |
||
Center Contact Resistance | 6 MΩ Max-ru |
||
Outer Contact Resistance | 1 MΩ Max-ru |
||
Mating Durability | ≥ 500 Cycles-ru |
||
Temperature Range | -65℃ to +165℃-ru |
||
Select... | SMB Type-ru |
Select... | Jack-ru |
Select... | Right Angle-ru |
Select... | Male Pin-ru |
Contact Termination Style | Solder-ru |
Select... | Panel Mount-ru |
Select... | Through Hole-ru |
Select... | Snap On-ru |
Number of Ports | 1-ru |
Select... | 50 ohm-ru |
Frequency - Max | 4GHz-ru |
Shell Material | Copper Alloy-ru |
Shell Finish | Gold Plated-ru |
Insulator Material | Teflon White-ru |
Contact Material | Brass-ru |
Contact Finish | Gold Plated-ru |
Dielectric Withstanding Voltage | 1000 VRMS Max-ru |
Insultation Resistance | ≥1000MΩ-ru |
Center Contact Resistance | 6 MΩ Max-ru |
Outer Contact Resistance | 1 MΩ Max-ru |
Mating Durability | ≥ 500 Cycles-ru |
Temperature Range | -65℃ to +165℃-ru |
Select... | SMB Type-ru |
---|---|
Select... | Jack-ru |
Select... | Right Angle-ru |
Select... | Male Pin-ru |
Contact Termination Style | Solder-ru |
Select... | Panel Mount-ru |
Select... | Through Hole-ru |
Select... | Snap On-ru |
Number of Ports | 1-ru |
Select... | 50 ohm-ru |
Frequency - Max | 4GHz-ru |
Shell Material | Copper Alloy-ru |
Shell Finish | Gold Plated-ru |
Insulator Material | Teflon White-ru |
Contact Material | Brass-ru |
Contact Finish | Gold Plated-ru |
Dielectric Withstanding Voltage | 1000 VRMS Max-ru |
Insultation Resistance | ≥1000MΩ-ru |
Center Contact Resistance | 6 MΩ Max-ru |
Outer Contact Resistance | 1 MΩ Max-ru |
Mating Durability | ≥ 500 Cycles-ru |
Temperature Range | -65℃ to +165℃-ru |
"SMB" is a type of small push-on locking RF coaxial connector, characterized by its small size, light weight, convenient use, and excellent electrical performance. It is suitable for connecting coaxial cables in high-frequency circuits of radio equipment and electronic instruments.
Kindly pls see the blew sheet:
Difference | Dimension | Impedance | Frequency | Connection type | Advantage |
SMA | Small | 50 Ohm | 0-18G(26.5G) | Screw | High frequency, Small size, Stable connection |
SMB | Smaller | 50 Ohm 75 Ohm |
0-4G | Push-on | Small volume, Easy to plug Good at anti-vibration |
For Cable Type:
Clamp
Solder
For Panel Type:
Through Hole
Edge Mount
Clamp
Bulkhead
Flange
Of course, Renhotec has been specialized in supplying RF connector and cable series for over 15 years, just talk with Renhotec freely, the more details you share, the best support you will get.
